We are proud to introduce a new collection to our highly acclaimed SBTs list – The HOST Aviation Tank range

  • Multiple storage sizes ranging from 12,000 L to 115,700 L

  • Built to UL142, AS1940, AS1692, AS1657

  • Durable, modular and robust design

  • Greater usable fuel volume than many other tanks

  • Approved to safely store and dispense Aviation fuels

  • Pumping solutions: 40 – 800 L/pm

  • Fuel Management Packages also fitted

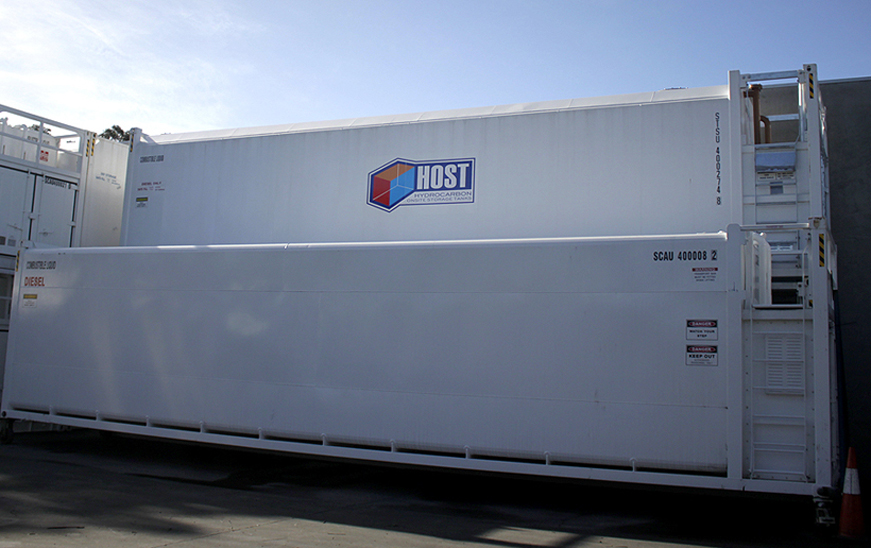

HOST Self Bunded Aviation Tanks

The HOST Aviation Tank range is a new solution for the aviation industry. The exacting demands and requirements of the aviation industry have driven the design and innovation process and these additions are evident in the features that now reside in these new high quality and cutting edge SBTs. The Aviation range is now available in all of the current HOST ISO Classic sizes and use the same specifications of design.



Host Aviation Tanks can be used as:

  • Single tanks or multi-million litre tank farms
  • Are ISO container design based on 10, 20, 40 and 48 foot specifications for ease of transportation
  • Designed to hold and dispense aviation fuels



The range builds upon acquired knowledge and experiences and include key features that deliver you huge benefits, such as:

  • Clean rounded lines on the inner tank eliminate stress points and areas for contamination to collect
  • Floor drains to a low point at the front of the tank for water removal
  • All tanks are intermodal. Standard containers can be transported by standard trucks or trains and moved by shipping container handling equipment, without cranes.
  • Stainless steel inner tank – no lining required
  • Sampling cabinet at the rear of the tank
  • Stainless floating suction pipe as standard
  • Stainless Dipstick
  • CSC plated for shipping
  • 1600 L/m mechanical overfill valve
  • Stainless steel high-level audible alarm



The HOST Aviation Tank range is founded on delivering ultimate safety

  • Tanks are certified and tested to the highest global standards for bulk fuel storage, UL142, these tanks exceed all relevant Australian Standards for storage of flammable and combustible liquids
  • When empty, the tank is also an approved, truly intermodal container as classified by CSC to IMO standards
  • They are also manufactured to meet the Australian standards, AS1940, AS1692, and AS1657 and are all Australian designed and Australian certified. A valuable feature if an emergency ever arises.

HOST SBT Aviations –Tank Sizes

Gallery

A stack more in every tank

Key features of every HOST Aviation Range:

  • All tanks are built to UL approval (PLUS AS1940, AS1692, AS1657 (A heavier duty design and structure than the Australian Standard).
  • All tanks have rounded corners on both the top and bottom of the tank, providing extra strength in the construction and more importantly does not allow debris or water pooling in the corners or the bottom of the tank.
  • These tanks have sloping floors (from the back to the front and from the sides to the middle). It ensures all water is pooling at the water well. Flat bottom tanks do not provide this benefit, this can result in water pooling and algae growth in the tank, potentially leading to a contaminated product. The water well has a suction tube installed for removal of water through the top of the tank.
  • Tanks come standard with emergency vents on the primary tank and interstitial section or bunded part.
  • All tanks are designed to be viewed from underneath as per AS1940 and more importantly to provide air flow to the base of the tank. The tank floor is elevated off the ground and is open at the sides allowing visual inspection and air flow to prevent moisture build up, which promotes corrosion on the bottom of the tank. Standard flat tanks don’t allow this type of airflow to naturally occur.
  • Overfill valve, Anti-syphon valves and High Level Alarms are supplied as standard on all tanks.
  • The fill line has a standard stainless steel 80mm Isolation valve and Check valve fitted.
  • All tanks come with stainless Steel Dipstick.
  • The pressure or suction pipe is fitted with an 80 mm Isolation valve.
  • The tanks roof is designed to cascade water off its surface, reducing corrosion.
HOST-Metres-Pumps-FMS

Need your tank fitted and ready to dispense? Our distributors all offer complete turn key solutions. Standard Self Bunded Bulk Liquid Storage Tank dispensing packages can be designed to include:



PUMPS

  • Light Vehicle – 80 L/pm
  • Heavy Vehicle or high flow – 160 L/pm
  • Mining Equipment – 800 L/pm
  • AdBlue Solution Pump – On tank and Off Tank
  • Ebsray Unloading Pump – up to 1000 L/pm



FUEL MANAGEMENT SYSTEMS


  • SmartFill, Piusi, Compac, Transponder and others
  • White Card / Company Cards
  • CCDCA (Credit Cards)
  • Remote Reporting via Web (No Fees)



TANK GAUGES


  • OPW Nano Tank Gauging
  • Remote viewing of tank volumes
  • High and Low Alarms



METERS

  • Electronic or Mechanical Registers
  • TCS meters or others



BULK DISPENSING EQUIPMENT


  • Liquip Loading Arms – up to 1800 L/pm)
  • Liquip Control Consoles and Metering
  • Liquip Over Fill Control Systems
  • Liquip Dead Man Switch

Download our brochure

Keep this on record so when the time come to discuss options with key stakeholders or compare with other tanks. (HOST Aviation Tanks follow the same specifications as HOST ISO Classic Tanks).

Want to know more about our HOST Aviation Range or need a price?

Send us an e-mail and we’ll get your nearest distributor to give you a call to discuss this tank range in more depth.
